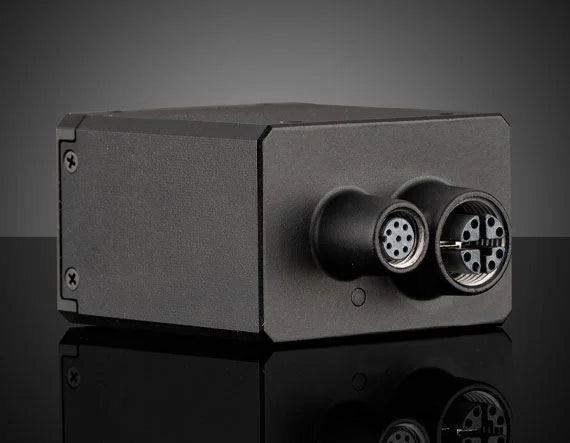

LUCID Vision Labs Triton2™ TRT081S-CC, Sony IMX546, 8.1MP, Color Camera

Lucid Vision Labs Triton2™ TRT081S-CC – 8.1 MP Color Industrial Camera, 2.5GigE PoE

🔍 Key Product Features:

• 🎥 High-Performance Sensor:
  Equipped with Sony IMX546 – 8.1 Megapixel resolution, Global Shutter, and 2/3" sensor format

• ⚡ Fast & Reliable Interface:
  2.5GigE Power over Ethernet (PoE) interface for high-speed data transfer

• 🌈 Color Imaging:
  Captures crisp, true-color images ideal for industrial vision applications

• 📐 Actively Aligned Sensor:
  Ensures precise sensor-to-lens alignment to reduce image distortion or tilt

• 🧊 Rugged Design for Harsh Environments:
  Optional lens tubes enable IP67 protection against dust and water

• 🔥 Wide Operating Temperature Range:
  Functions reliably between -20°C to +55°C

📊 Technical Specifications

General:

• Type: Color Industrial Camera

• Model Number: TRT081S-CC

• Series: Triton2™

• Manufacturer: Lucid Vision Labs

• Spectrum: Color

Sensor:

• Imaging Sensor: Sony IMX546

• Sensor Type: Progressive Scan CMOS

• Resolution: 8.10 MP (2840 x 2840)

• Pixel Size: 2.74 µm x 2.74 µm

• Sensing Area: 7.78 mm x 7.78 mm

• Shutter Type: Global

• Image Buffer: 128MB

• Pixel Depth: 12 bit

• Frame Rate: 31.8 fps

• Exposure Time: 13.056 μs to 10 s

• Dynamic Range: 48 dB

Electrical & Connectivity:

• Power Consumption: 4.5W (External) / 5.0W (PoE)

• Interface: 2.5GigE (PoE), backward-compatible with GigE

• GPIOs:

  • 1 opto-isolated input

  • 1 opto-isolated output

  • 2 non-isolated bi-directional ports

• Synchronization: Hardware Trigger, Software Trigger, or IEEE 1588 (PTP)

• Connector Type: 8-pin M8

• Interface Orientation: Back Panel

Mounting & Housing:

• Lens Mount: C-Mount

• Mounting Threads: ¼-20 with tripod adapter

• Dimensions (mm): 44.0 x 29.0 x 45.3 (excluding connectors/lens)

• Weight: 90 g

• Housing: Full, optional IP67 with accessories

Environmental:

• Operating Temperature: -20°C to +55°C

• Storage Temperature: -30°C to +60°C

Compliance & Certifications:

• Machine Vision Standard: GigE Vision v2.0

• RoHS: Exempt

• Certificate of Conformance: Available

Power Supply (Sold Separately):

• USA: #18-364

• Europe & China: #18-365

• Japan: #18-364

• Korea: Not Available

🛠 Applications:

Ideal for:

• Automotive vision systems

• Process control & automation

• Food & beverage inspection

• Environments requiring dust or moisture protection
