Description

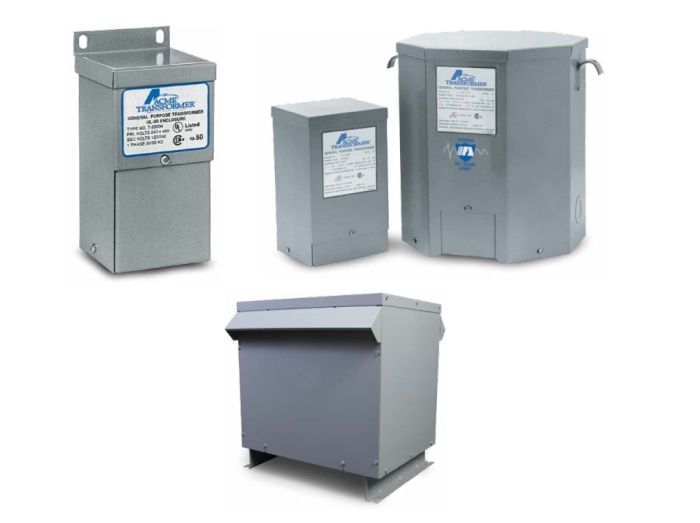

Transformers, T Series
Item #
T-2-53517-3S
TFMR 1PH 15KVA 240X480-120/240
T Series Information
- General Purpose Transformer‑Dry Type
- UL Listed
- 1 Phase, 3 Phase
- Housed in NEMA 3R Enclosures
- Resin Encapsulation Keeps Out Moisture and Dirt
Specifications
| Manufacturer Part Number | T2535173S |
|---|---|
| Manufacturer | Acme Electric |
| Product Series | T |
| Family Series | Acme Electric Transformers, T Series |
| Description | Low Voltage Distribution Transformer - Single Phase, 240X480 - 120/240V, 15kVA |
| Phase | 1 |
| Type | Distribution |
| VA Rating | 15,000 VA |
| Primary Voltage | 240 V, 480 V |
| Secondary Voltage | 120 V, 240 V |
| Enclosed | Yes |
| Primary Fuseholder | Not Available |
| Secondary Fuseholder | Not Available |
| Mounting | Wall |
| NEMA Rating | NEMA 3R |
| Insulation Class | Class H |
| Temperature Rise (F) | 239 °F |
| Approvals | CSA, UL |
| Net Weight | 170 lbs |
| Gross Weight | 158 lbs |
