📊 Technical Specifications
| Attribute | Value |
|---|---|
| Brand | Hubbell |
| Part Number | HBL67W48 |
| NEMA Configuration | L6-20R (Twist-Lock® Receptacle) |
| Current Rating | 20 Amps |
| Voltage Rating | 250V AC |
| Phase | Single |
| Poles / Wires | 2 Poles / 3 Wires |
| Wire Size Range | 18 AWG – 8 AWG |
| Wiring Style | Standard |
| Wire Connection | Screw Terminals |
| Mount Type | Flush Mount |
| Flange Type / Shape | Flanged / Rectangular |
| Cover Type | Flip-Up Cover |
| Connection Orientation | Straight |
| Shrouded | No |
| Polarized | Yes |
| Contact Material | Nickel-Plated Brass |
| Housing Material | Thermoplastic Elastomer |
| Insulation Material | Thermoplastic Elastomer |
| Housing Color | Yellow |
| Resistance Properties | Impact Resistant, Watertight |
| IP Rating | IP69K |
| NEMA Enclosure Ratings | 4, 4X, 6, 6P, 12 |
| Max Operating Temp | 60 °C |
| Min Operating Temp | -40 °C |
| Standards | ANSI, NEMA WD-1, WD-6 |
| UNSPSC | 39121406 |
| Country of Origin | USA (subject to change) |

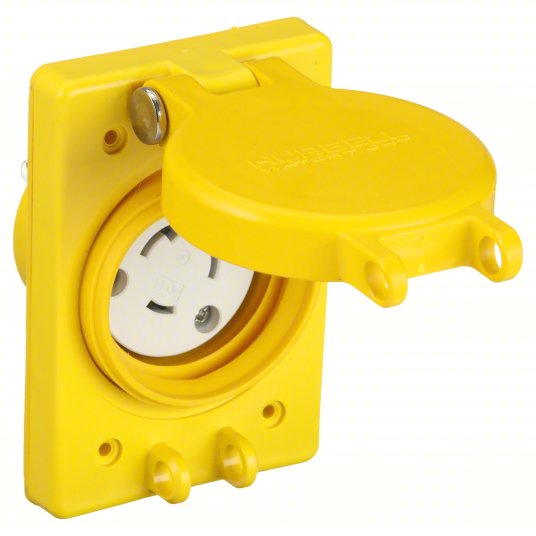

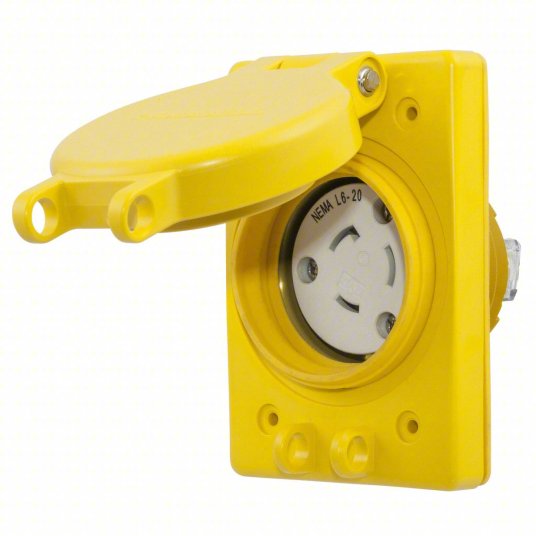

Hubbell HBL67W48 Flanged Watertight Receptacle – NEMA L6-20R, 20A, 250V, IP69K, Yellow
🔧 Key Features:
-
⚡ NEMA L6-20R Twist-Lock® Receptacle – Rated for 20A, 250V AC, Single Phase
-
🛡️ Rugged Industrial Build – Designed for harsh environments with impact-resistant and watertight construction
-
💧 Superior Environmental Protection – IP69K and NEMA 4, 4X, 6, 6P, 12 enclosure ratings
-
🔩 Flush Mount, Flanged Design – Rectangular flange for secure installation in panels or enclosures
-

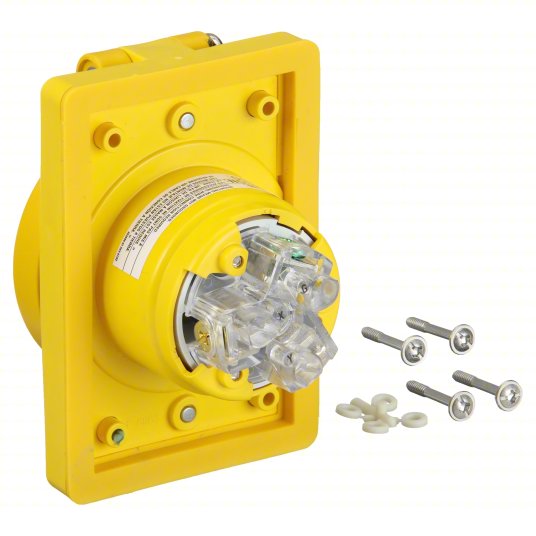

🔌 Standard Wiring Style with screw terminals supports #18 to #8 AWG wire sizes
-
📏 Polarized & Straight Orientation – Ensures proper connection and enhanced safety
-
🟡 High-Visibility Yellow Housing made from thermoplastic elastomer for durability
-
✅ Flip-Up Protective Cover included to prevent contamination when not in use
-
🌡️ Wide Operating Temperature Range: -40°C to +60°C
-
🇺🇸 Made in USA (subject to change)
-
📜 Compliance: ANSI, NEMA WD-1, WD-6
